Bright Box Homes
Emergency Housing
Folding emergency units for disaster relief, shelters and workforce camps. Bulk pricing from one unit.
Per unit, 1–11 units$2,000
Financing available - check your rateIncluded as standard
- $2,000 per unit; $1,499 per unit for 26–50 units
- Folds flat: 12 units per 40 ft high-cube container

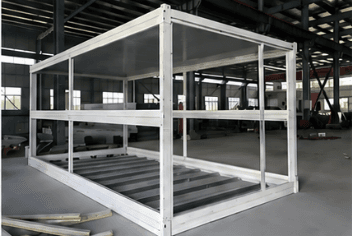

- Galvanized, painted steel frame
- Fire-resistant IEPS wall panels and door
- Wind rating grade 11 (about 75 mph)
- Modular bathroom and kitchenette options
- 19' x 7.3' x 7.5'
- External dimensions
- 18'6" x 6'11"
- Internal dimensions
- 19' x 7' x 1.2'
- Folded size
- Galvanized and painted
- Steel structure
- IEPS fire-resistant door
- Door
Specifications
The Details

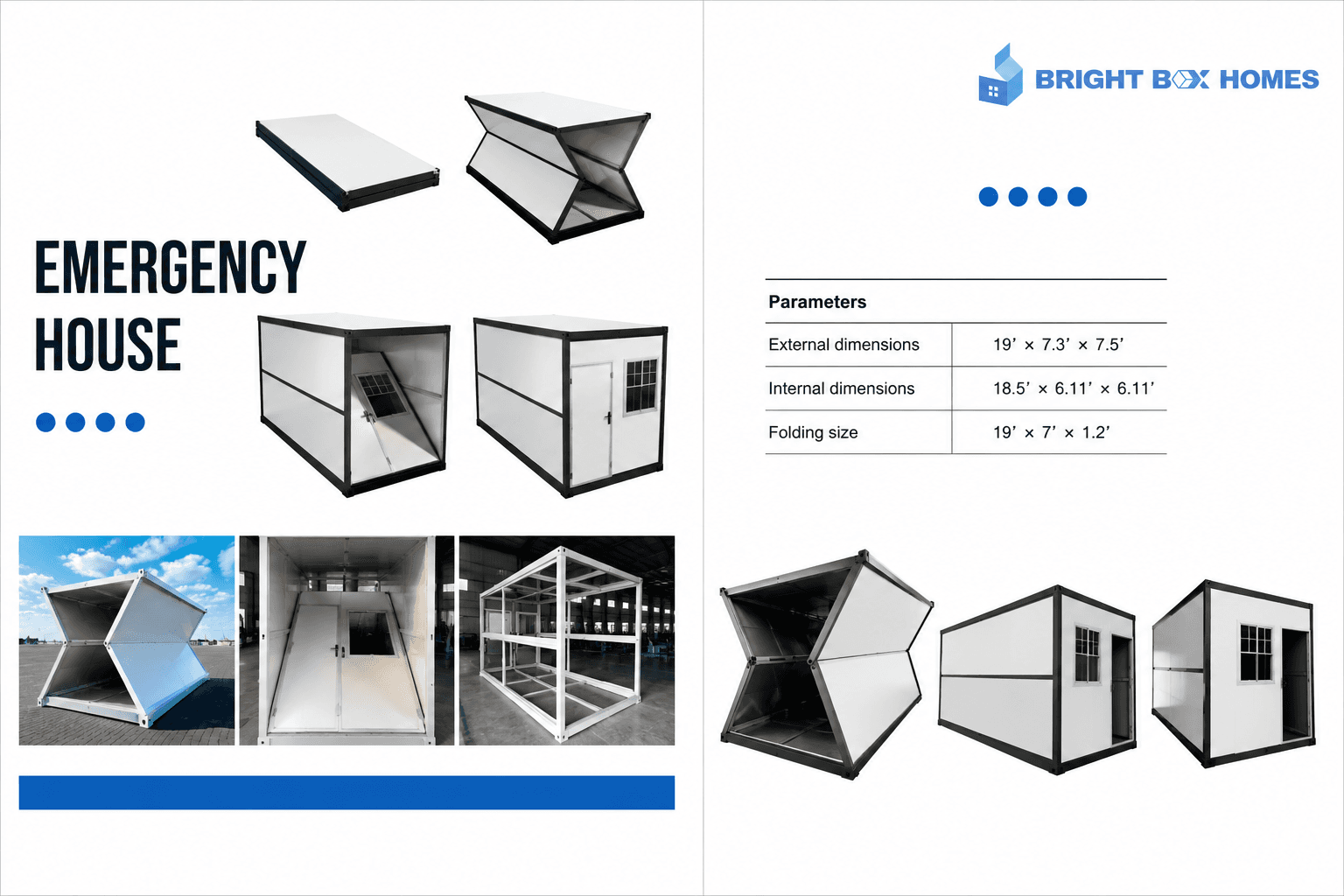

- External dimensions
- 19' x 7.3' x 7.5'
- Internal dimensions
- 18'6" x 6'11"
- Folded size
- 19' x 7' x 1.2'
- Steel structure
- Galvanized and painted
- Wall panel
- About 1-9/16 in (40 mm) IEPS fire-resistant sandwich panel
- Roof
- Steel sheet about 0.024 in (0.6 mm) thick, about 4 in (100 mm) of glass wool insulation, steel ceiling
- Window
- Aluminum sliding window with security bar
- Door
- IEPS fire-resistant door
- Floor
- About 3/4 in (18 mm) MGO board, painted
- Electrical
- LED lighting, sockets, switch and wiring
- Wind rating
- Grade 11, about 75 mph (120 km/h)
- Roof live load
- About 12.5 psf (0.6 kN/m²)
- Roof snow load
- About 12.5 psf (0.6 kN/m²)
- Shipping
- 12 units per 40 ft high-cube container
- Factory lead time
- Normally 20–25 days
- Bathroom & kitchenette
- Not included; options at $675 and $825 per unit

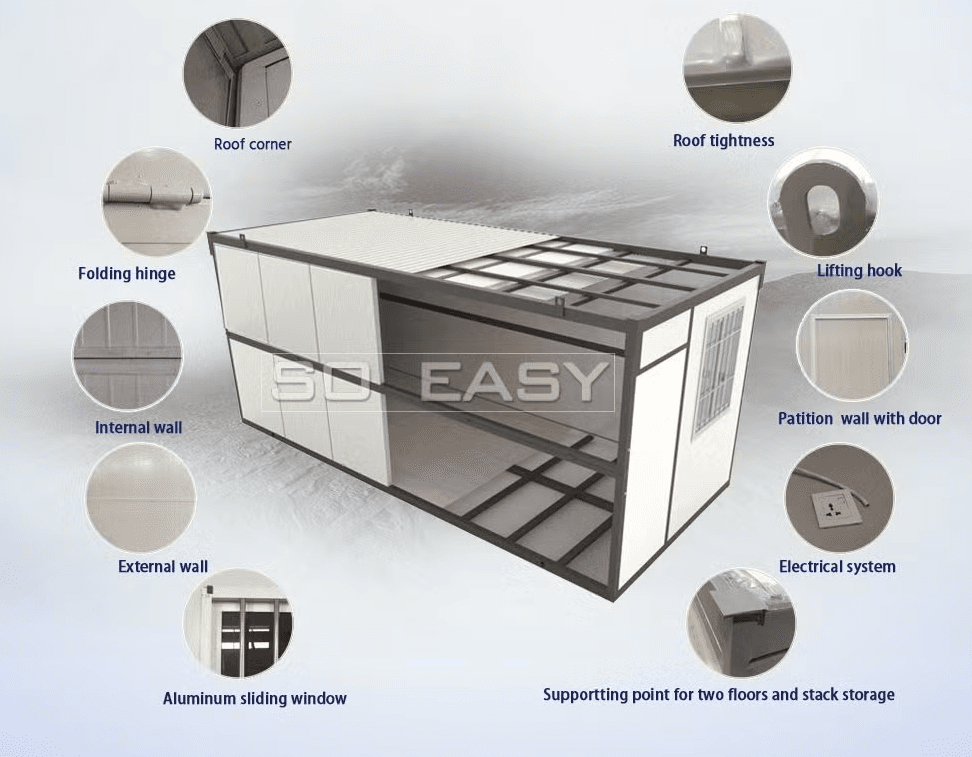

Construction & Frame
Pricing
Bulk Pricing, From One Unit
The price per unit drops as the order grows. Order one unit or fifty; for more than 50 units, request a quote.
| Units ordered | Price per unit |
|---|---|
| 1–11 | $2,000 |
| 12–25 | $1,875 |
| 26–50 | $1,499 |
| More than 50 | Request a quote |
Options, per unit
- Modular Bathroom Upgrade+$675
A self-contained bathroom pod (shower, toilet and wash basin behind a sliding door) set inside the unit. It needs a water supply and a drain at the unit.

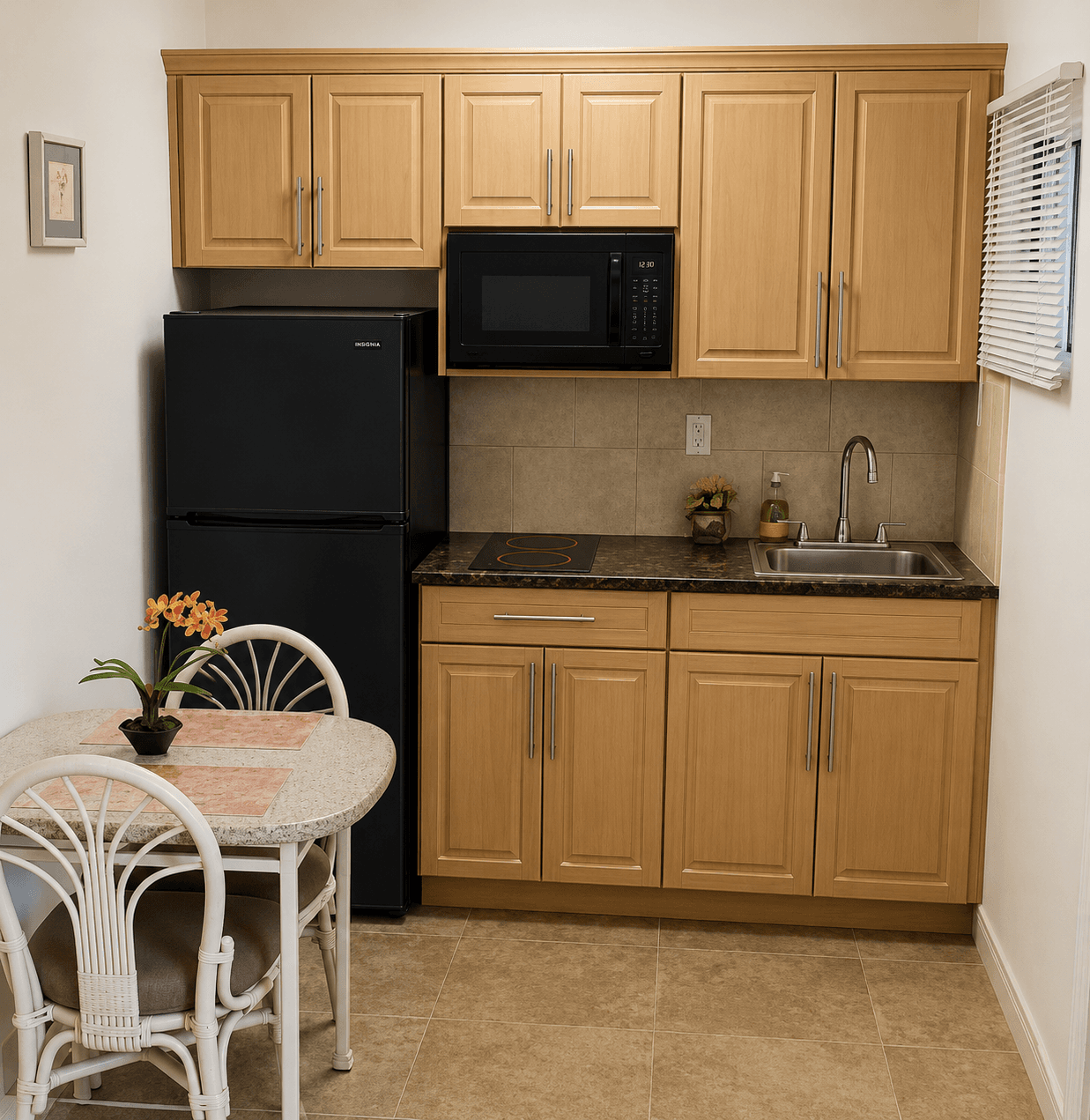

- Kitchenette Upgrade+$825
A compact kitchenette fitted inside the unit. Its exact fit-out is confirmed with your order.
The base unit has no bathroom or kitchenette. Prices are per unit, before delivery; freight to your site is quoted with your order.
About This Home
About the Emergency Housing

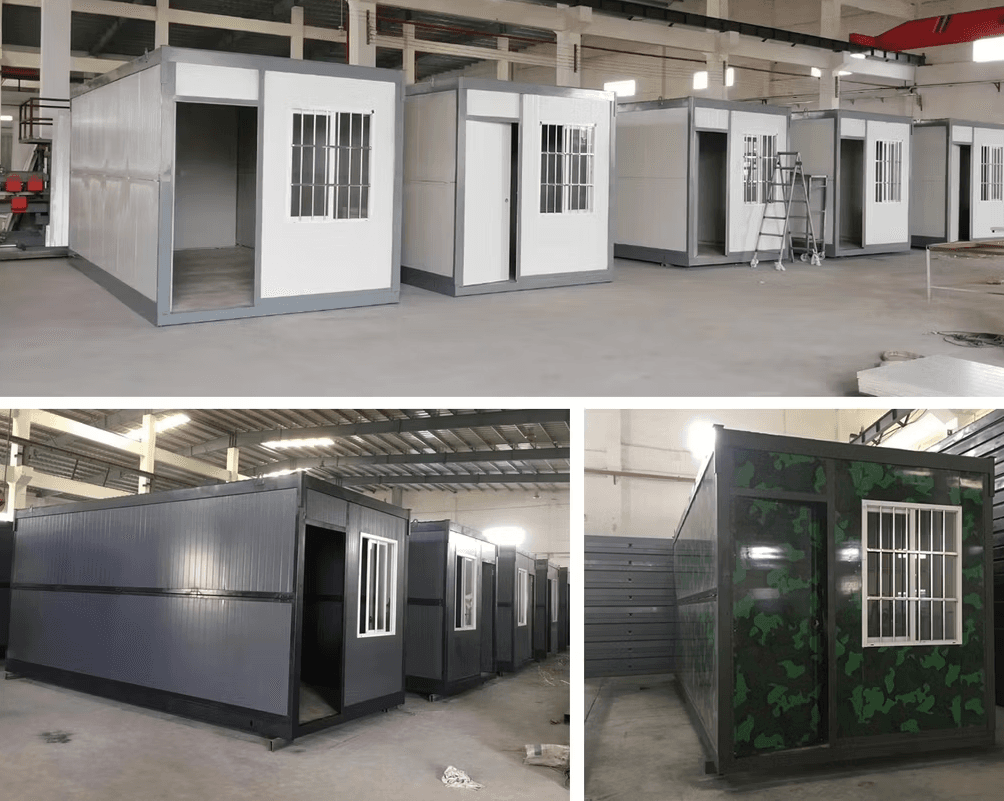

Folding steel units that ship flat, twelve to a container, and unfold on site into weather-tight rooms: a galvanized frame, fire-resistant IEPS panels, an aluminum sliding window with security bar, and LED lighting and sockets. Add a modular bathroom or a kitchenette per unit.
When a disaster strikes or a crew deploys, speed and volume matter. Bright Box emergency units ship folded flat (12 to a 40 ft high-cube container), lift and unfold on site, and cost $2,000 per unit, down to $1,499 per unit for orders of 26–50. The base unit has no bathroom or kitchenette; add them per unit as options.

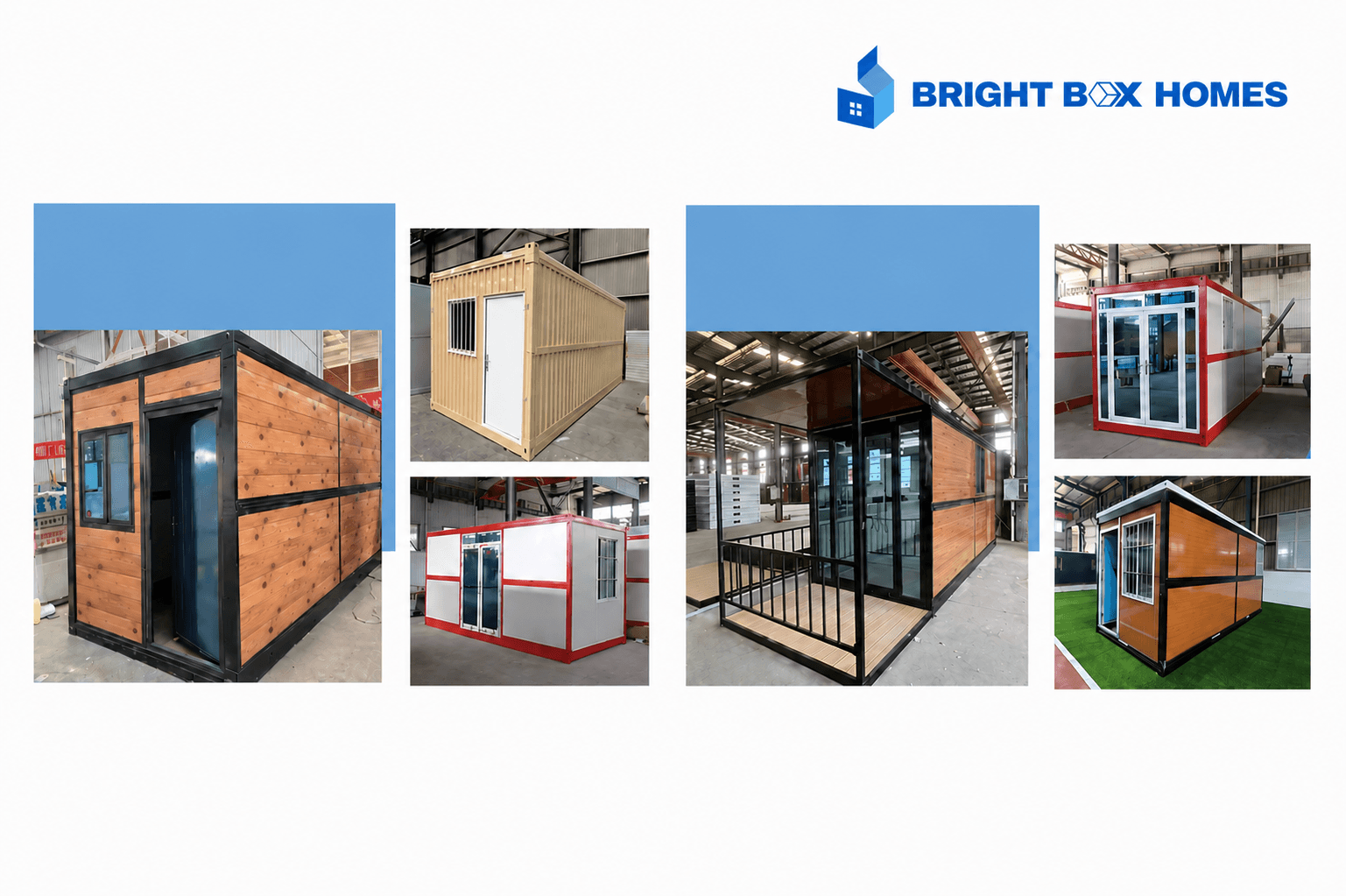

Exterior
See It From Every Angle

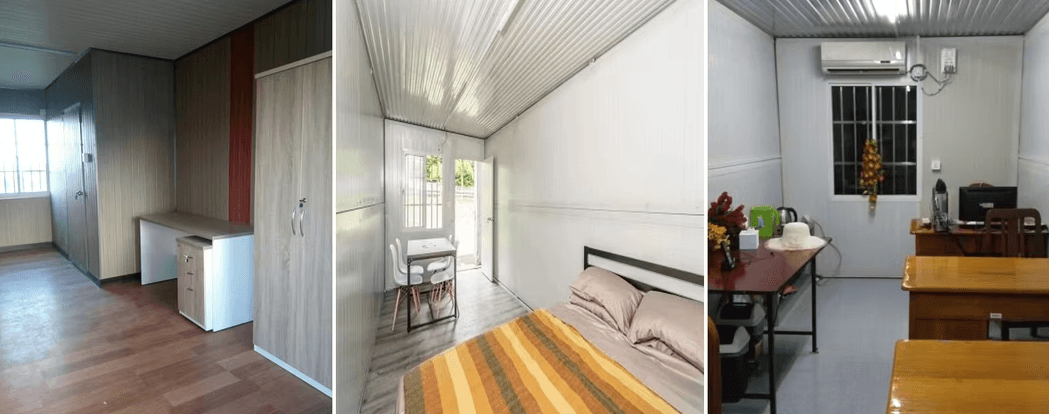

Interior
Inside

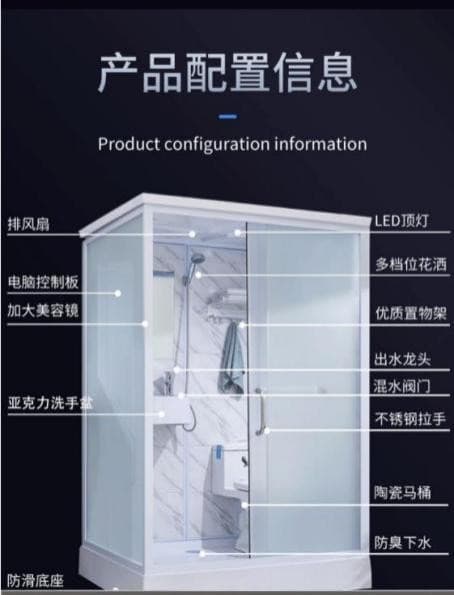

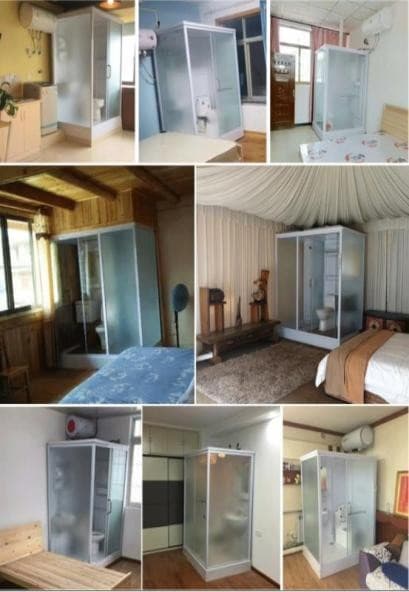

Option · +$675 per unit

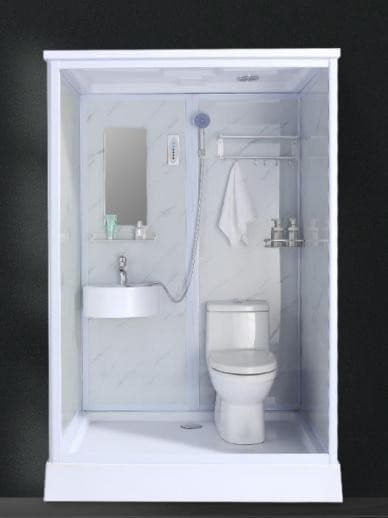

Modular Bathroom Upgrade

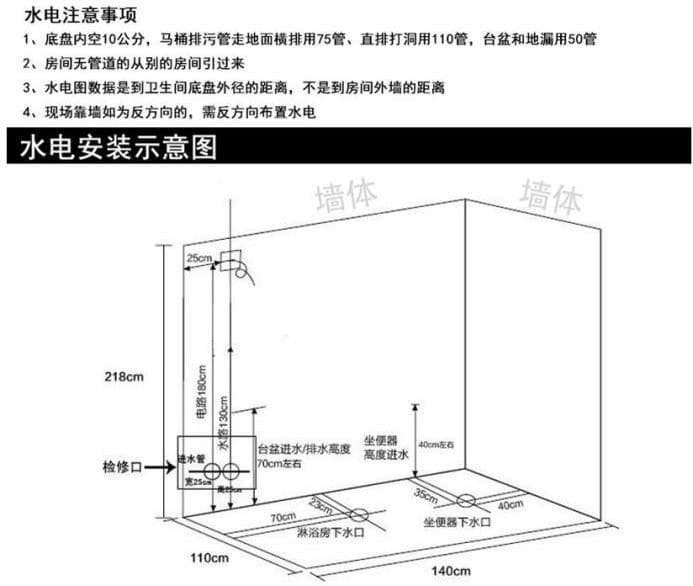

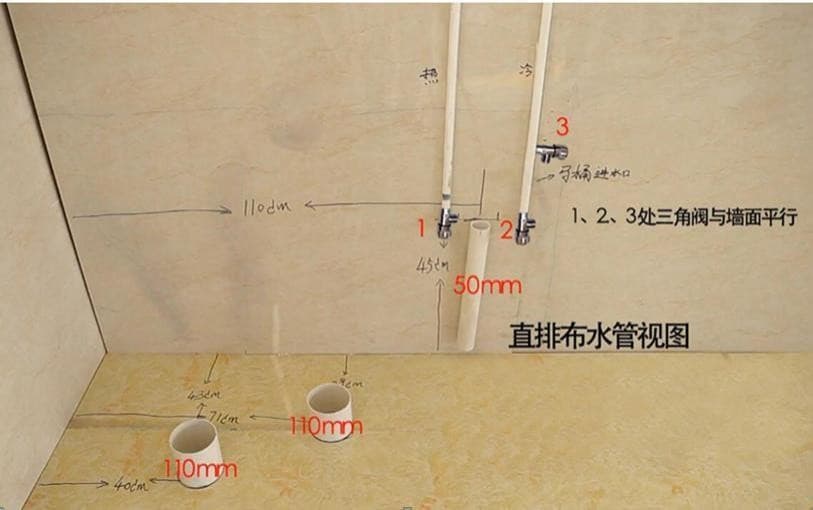

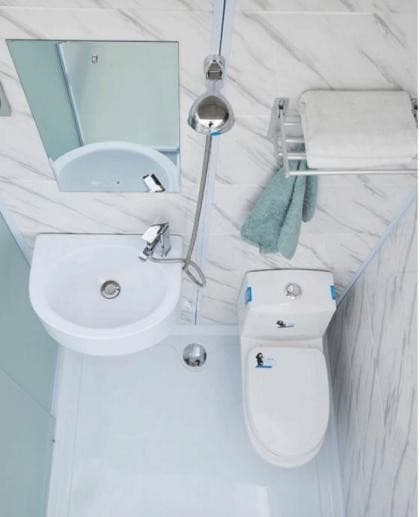

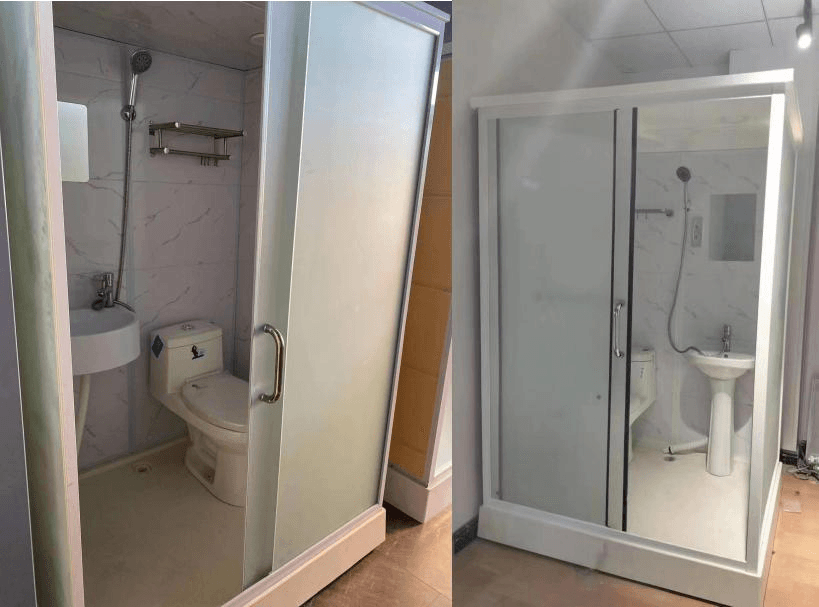

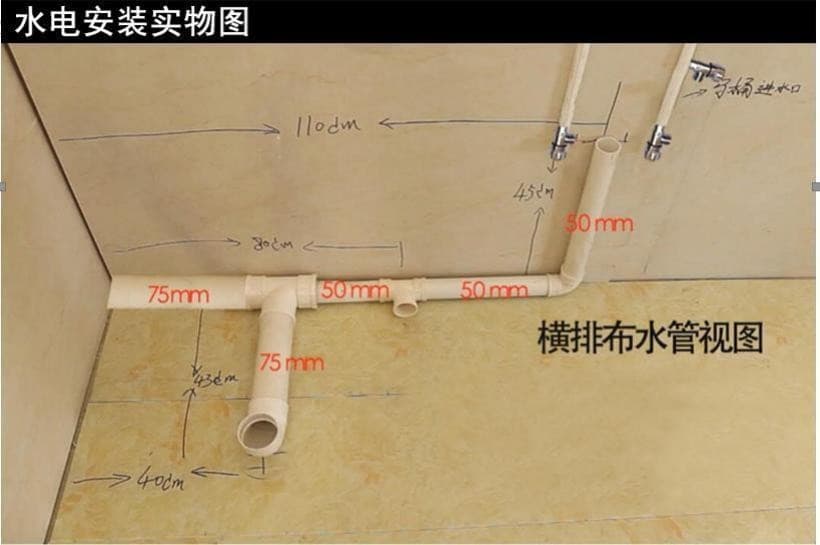

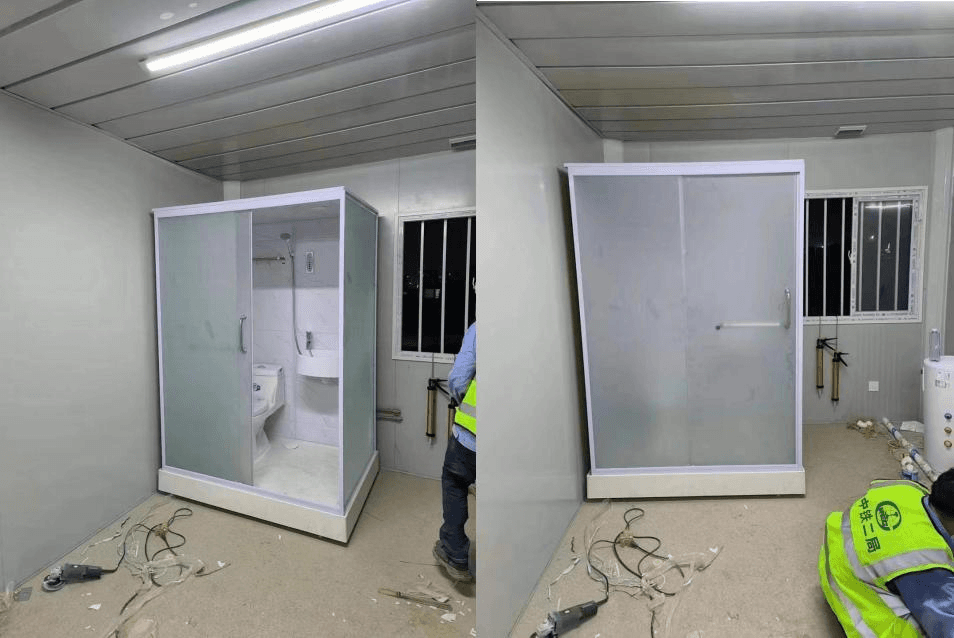

A complete bathroom pod (shower, toilet and wash basin behind a sliding door) set inside the unit. It needs a water supply and a drain at the unit; the drawings below show where they go.
Features and installation drawings
Key Features
Built to a Higher Standard
Ships Folded Flat
Each unit folds to about 1.2 ft high, so 12 fit in one 40 ft high-cube container.
Fast to Deploy

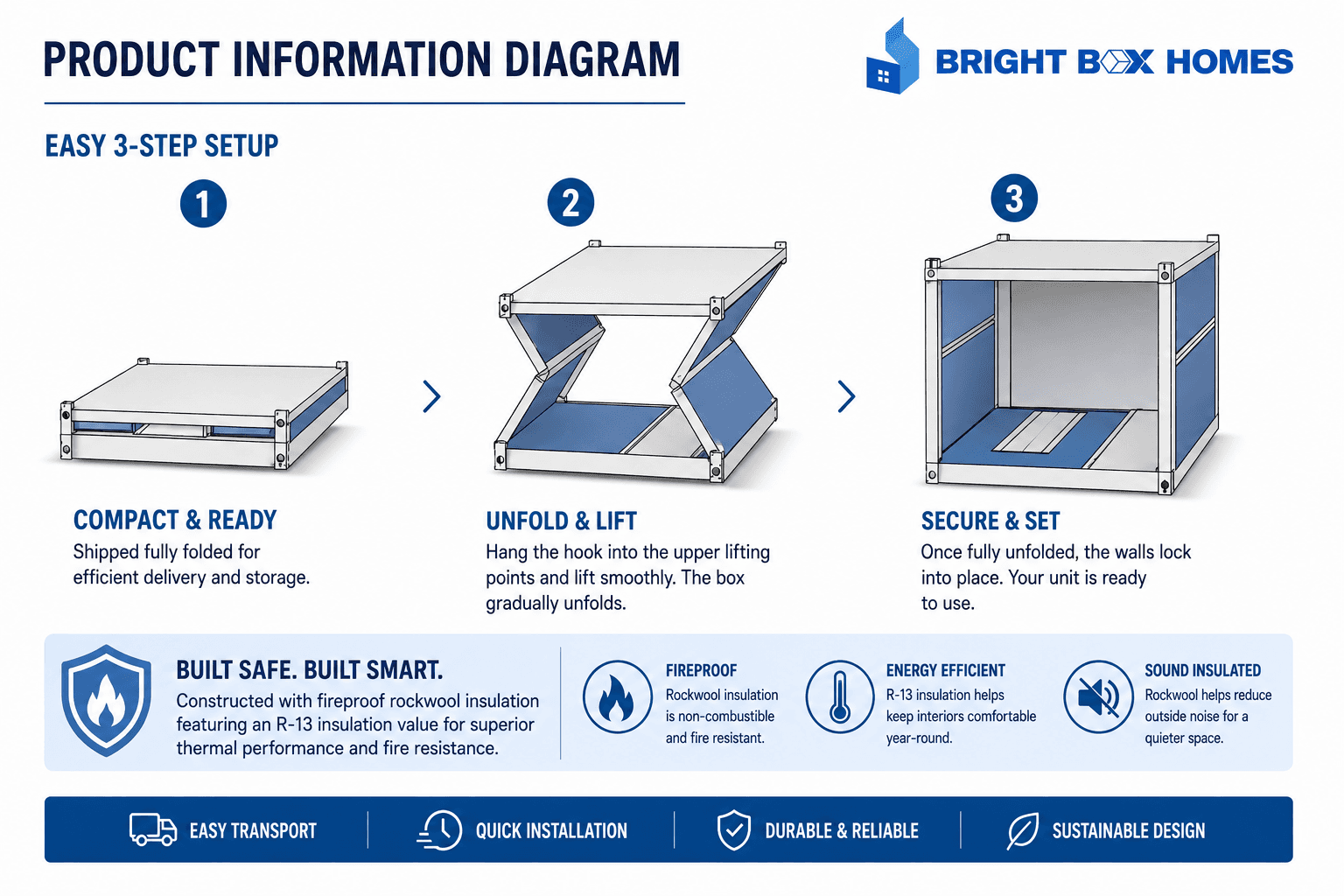

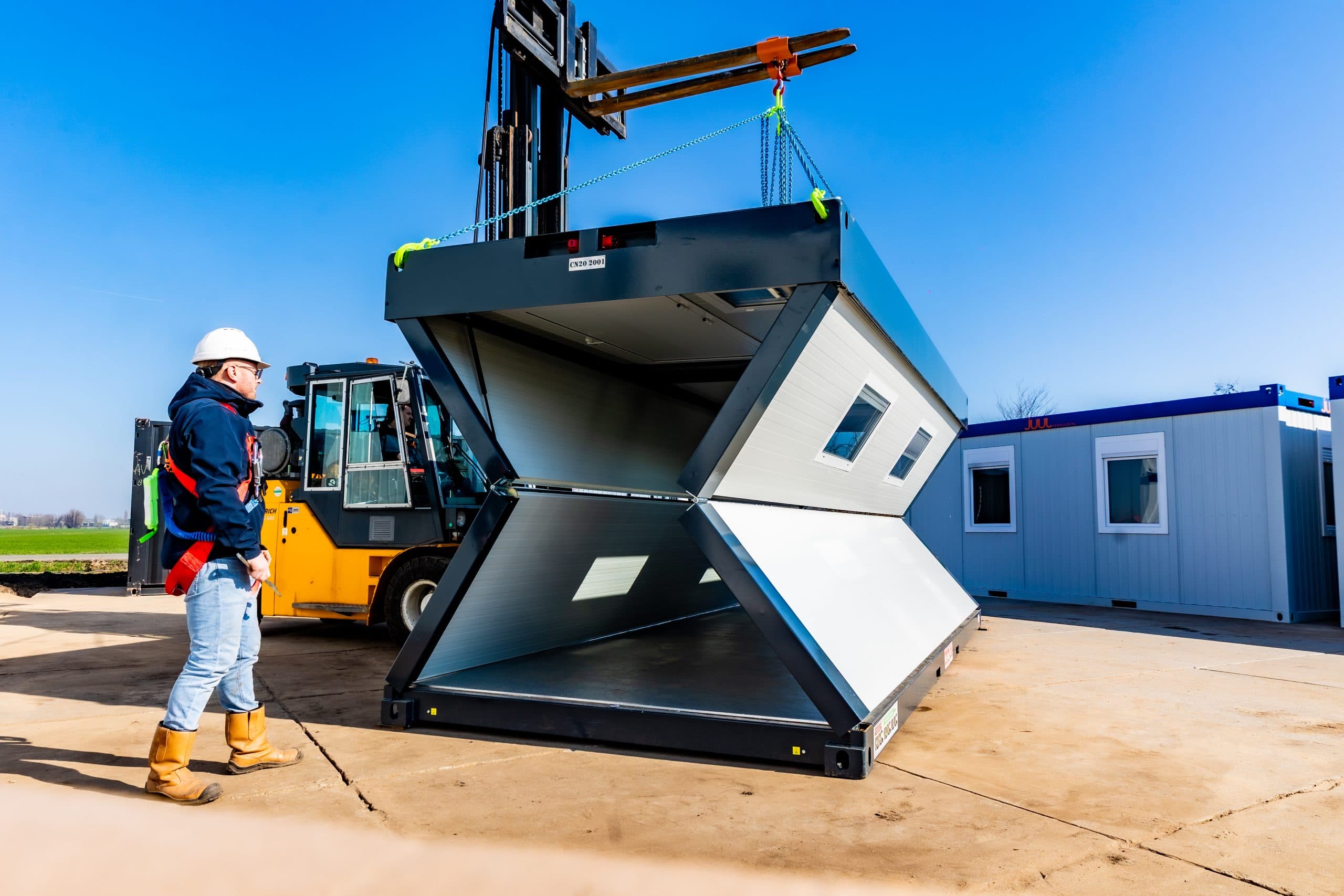

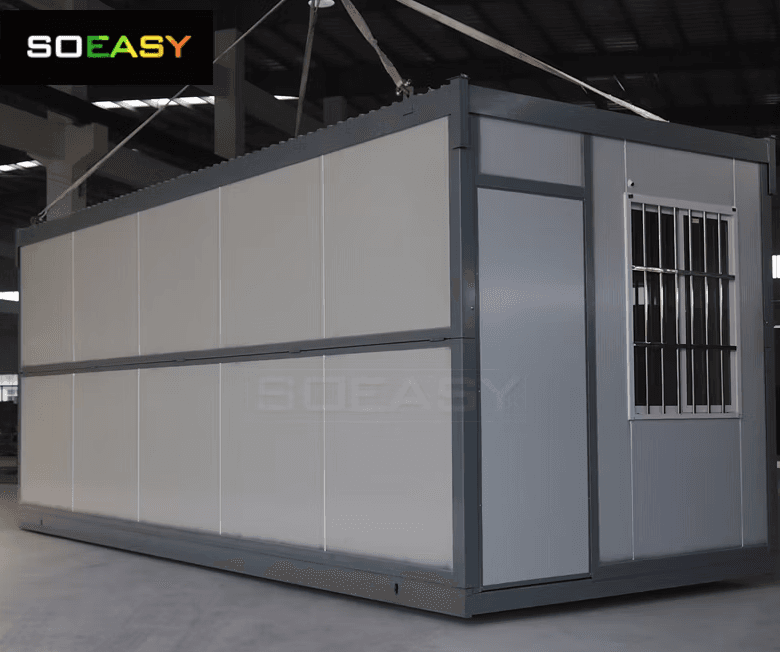

The factory lead time is normally 20–25 days. On site, a crane or forklift lifts the unit from its corner points and it unfolds.
Bulk Tiers From One Unit
$2,000 per unit for 1–11, $1,875 for 12–25, $1,499 for 26–50. Larger orders by quote.
Steel Frame, IEPS Panels
A galvanized and painted steel frame with fire-resistant IEPS sandwich panels and door.
Rated by the Factory
Wind rating grade 11 (about 75 mph); roof live and snow load about 12.5 psf each.
Options Per Unit
A modular bathroom ($675) or a kitchenette ($825), fitted unit by unit.
Who It's For
One Home, Many Possibilities
Disaster Relief
Interim shelter for households displaced by floods, fires, and storms.
Emergency Shelters
Rows of private units for shelter operators, in place of open-floor cots.
Workforce Camps
Bunk, office, and storage units for crews at remote and recovery sites.
Response Staging
Command posts, supply rooms, and crew quarters at disaster-response staging areas.
For Agencies, Shelters and Contractors
Rapid-Deployment Housing, Priced for Bulk
When a flood, fire or storm displaces a community, shelter has to arrive by the truckload. Each Bright Box emergency unit ships folded flat, twelve to a 40 ft high-cube container, and unfolds on site with a crane or forklift. The factory lead time is normally 20–25 days.
Use the units for disaster-relief housing, private rooms in emergency shelters, workforce camps, and command posts, supply rooms and crew quarters at response staging areas. Order a single unit to evaluate it, or up to 50 at the published tier prices; for larger programs, request a quote and we will price the order, the options and the freight together.
We do not claim FEMA, HUD or building-code approval, or any certification, for these units. Tell us your program's requirements and we will tell you plainly what the unit does and does not meet.
Upgrades
Customize Your Home
Premium upgrades to make your Bright Box Home uniquely yours.

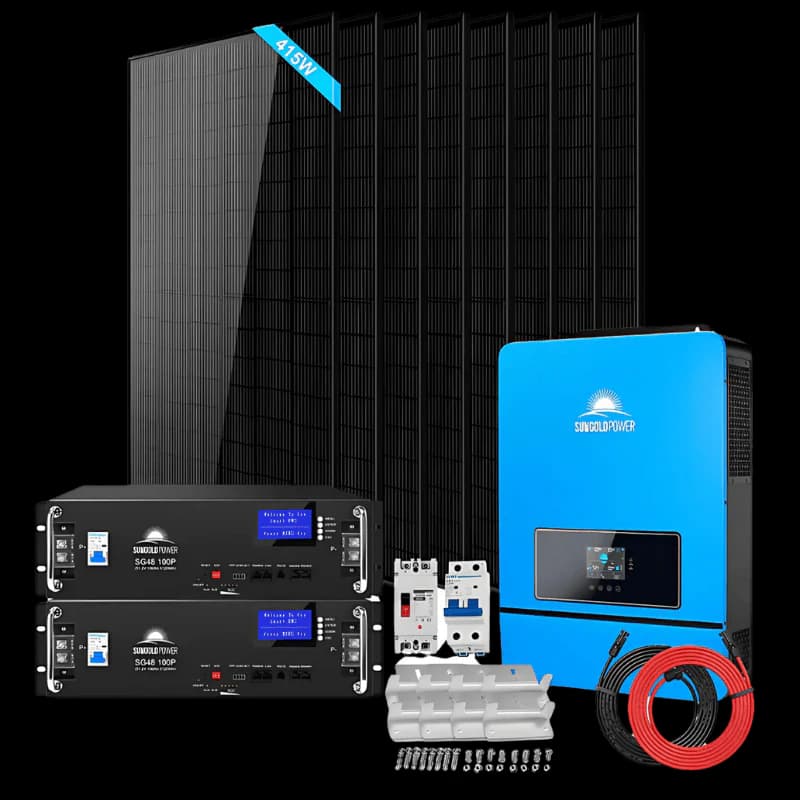

8000W Solar Inverter: AC Output 8000W, Pure Sine Wave, 120/240V split/single phase, parallel up to 6 units, Max PV Input 500VDC, 92% efficiency, Max Charging 200A, Max PV Array 11,000W, UL1741 ETL. LiFePO4 Battery: 51.2V, 100Ah, 5.12kWh, 7000+ cycle life, RS232/RS485/CAN, 10yr warranty. 415W Solar Panels: Monocrystalline, UL61730/TUV/IEC/CEC/CE, 25yr warranty.
Price: TBD
10000W Pure Sine Wave Inverter, 120/240V split phase, MPPT 125-425VDC, 92% efficiency, 200A max charging, 11,000W PV input, UL1741 ETL, 3yr warranty. Battery: SG48100P LiFePO4, 51.2V, 100Ah, 5.12kWh each, 20.48kWh total, 7000+ cycles, UL1973/CE/UN38.3, 10yr warranty. Panels: 12x 450W bifacial N-type mono (5.4kW total), UL61730/CEC, 12yr product + 30yr performance warranty. Parallel up to 6 inverters.
Price: TBD
Reinforced metal truss system with additional supports rated for roof-mounted solar panel installations. Includes 2 additional trusses for load distribution.
Price: TBD
15,000W dual-fuel (gas/propane), 670cc OHV engine, copper windings, electric push-button start. Outlets: 5x 120V GFCI, 1x 120V 30A, 1x 120/240V 30A twist-lock, 1x 120/240V 50A. Transfer-switch compatible. Digital control panel with voltage, frequency, runtime hours, and maintenance intervals.
Price: TBD
9,000 BTU (¾-ton) inverter heat pump, 17 SEER2, Wi-Fi smart control, R32 or R410A refrigerant, 110V. One per bedroom.
Price: TBD
24,000 BTU inverter heat pump, 20+ SEER2, full DC inverter compressor, R32 or R410A refrigerant, 110V.
Price: TBD
Zomagas 24-inch cooktop with two burners (item ZMAG1031), set into the kitchen worktop. Standard in every home.
Price: TBD
InSinkErator Badger 5 continuous-feed garbage disposal: a 1/2 HP Dura-Drive induction motor, galvanized steel grind components and a 26 oz. grind chamber; 11-1/2 in high; 120 V, 6.3 A, on a wall switch; Quick Lock mount; manual-reset overload protection. Factory-installed power cord, plugged into an outlet inside the sink cabinet. 5-year in-home limited warranty. Standard in every home with a kitchen sink.
Price: TBD
GE 14.6 kW electric tankless water heater (GE15SNHPDG): heats water on demand, with no tank. 240 V on a single dedicated circuit (61 A, 4 AWG copper). Up to 2.9 gallons per minute with 72°F incoming water and a 105°F outlet, GE's rating for warm climates (about two faucets and one shower at once); colder incoming water gives less flow. Temperature adjustable from 100°F to 140°F. 14.2 x 8.5 x 2.4 in. 5-year limited warranty. Standard in every home.
Price: TBD
Electrolux 24-inch compact laundry: the ELFW4222AW front-load washer (2.4 cu ft) and the ELFE4222AW ventless condensation dryer (4.0 cu ft), stacked on the STACKIT24A kit. Each is 23-5/8 in wide and 33-1/2 in high; the washer is 25 in deep, the dryer 24 in; stacked, 68-1/2 in high. The washer runs on 120 V (its own 15 A circuit); the dryer on 240 V (its own 30 A circuit, a NEMA 14-30 receptacle, fitted with a 4-wire cord). No dryer vent: the dryer condenses the moisture and pumps it to the washer's drain. Keep the door open while the dryer runs if it stands in a closet. The stack stands against the bathroom's hall wall, beside the bathroom door, on the 20×30, the 20×40 and the 20×20 one-bedroom (and each Duplex one-bedroom unit); on the 20×20 two-bedroom, the 20×20 one-bedroom with its sitting area or a right rear door, and each Duplex two-bedroom unit it stands in the kitchen's rear corner (side by side under the corner worktop when the back-corner cabinets are ordered). Every home is built with the hookups ready: hot and cold taps with a drain, and the 240 V receptacle.
Price: $2,849
Standard metal roof truss system for expandable homes. Provides structural support for standing seam metal roofing.
Price: TBD

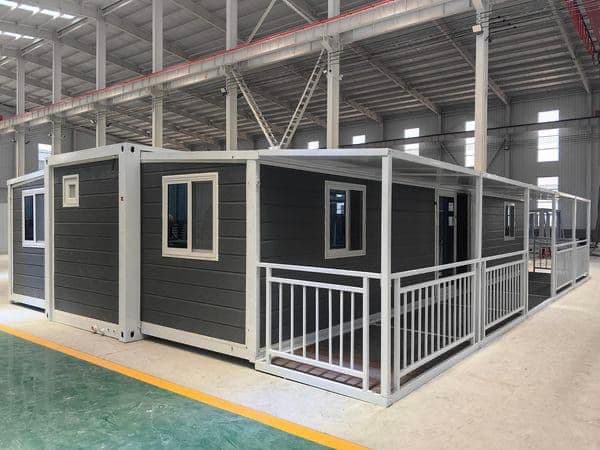

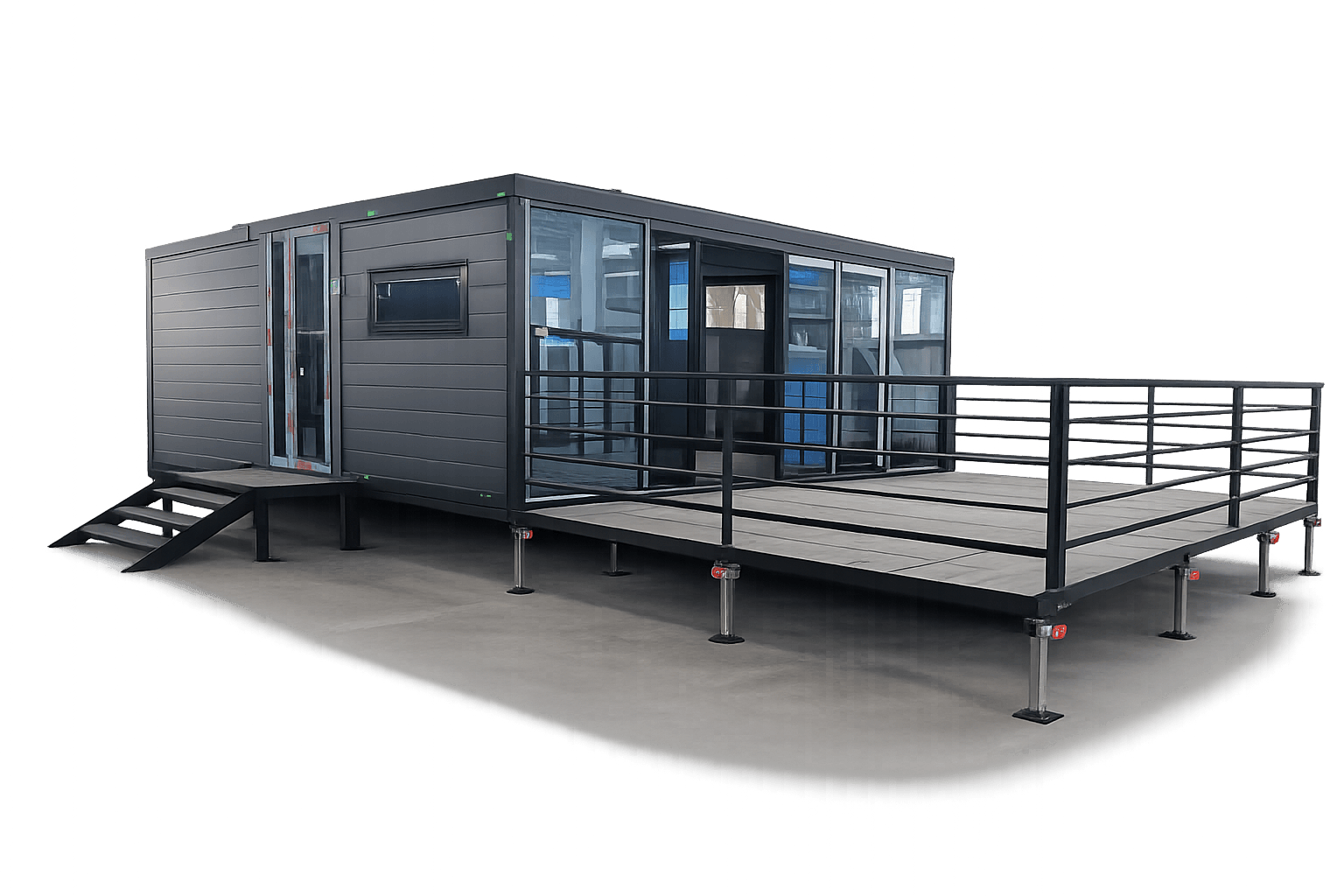

Extended deck platform for additional outdoor space. Durable composite construction.
Price: TBD
Ready to Reserve?
Secure your home with a fully refundable $500 deposit. We'll contact you within 24 hours to finalize your configuration.
100% refundable · No obligation · Locks your configuration
