Bright Box Homes
Container food stand with custom illuminated signage at night.

Bright Box Homes

Vending Units

Kiosks, coffee stands, retail pop-ups and ticket booths, built from our steel assembly module.

Starting at$2,500

Financing available - check your rate
Reserve - $500

Included as standard

  • 19'6" x 9'10" steel module, the same as our Assembly Homes
  • Custom exterior branding and color
  • Serving windows and counter
  • Plumbing rough-in available
  • Join units for a larger storefront
  • Relocatable by truck

Specifications

The Details

Unit size
~171 sq ft interior per module (19 ft 6 in L x 9 ft 10 in W x 9 ft 2 in H outside)
Inside
18'10" x 9'1", 8'3" ceiling
Frame
Galvanized steel, with corner fittings for lifting and stacking
Walls
Insulated sandwich panels, about 3 in (75 mm)
Floor
3/4 in cement fiber board under a PVC floor covering
Entrance door
Steel, 3'0" x 6'8"
Windows
3'0" x 3'11" with security mesh
Electrical
Surface-mounted wiring, completed on site after delivery
Customization
Exterior branding, serving windows, counter and interior buildout
Uses
Kiosks, coffee stands, retail pop-ups, ticket booths
Plumbing
Rough-in available

About This Home

About the Vending Units

A Vending Unit is one 19'6" x 9'10" steel assembly module fitted out as a storefront: exterior branding, serving windows, and a counter and prep area. Plumbing rough-in is available; wiring is surface-mounted and completed on site after delivery. Units join side by side for a larger storefront and move by truck for multi-location operators.

A Vending Unit is one of our steel assembly modules, 19'6" x 9'10" outside, fitted out as a storefront: serving windows, a counter, branding, and the layout your business needs. It is the same module as our Assembly Homes, apartments and offices, with the same structure, specifications and options. Rugged, lockable and relocatable, it is a fast way to put a branded business on any lot.

Exterior

See It From Every Angle

Open after dark, with custom illuminated signage.

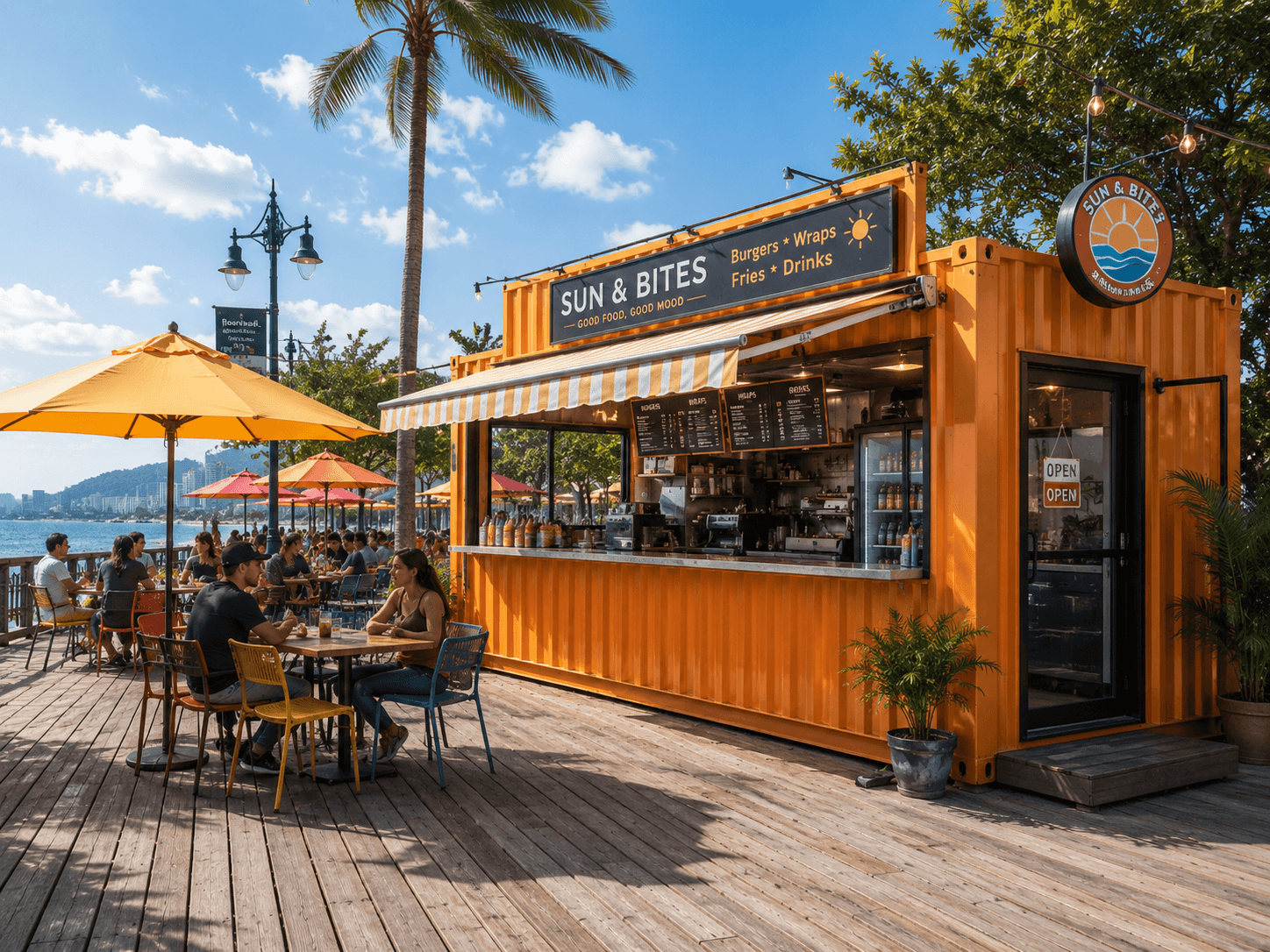

A boardwalk stand with outdoor seating.

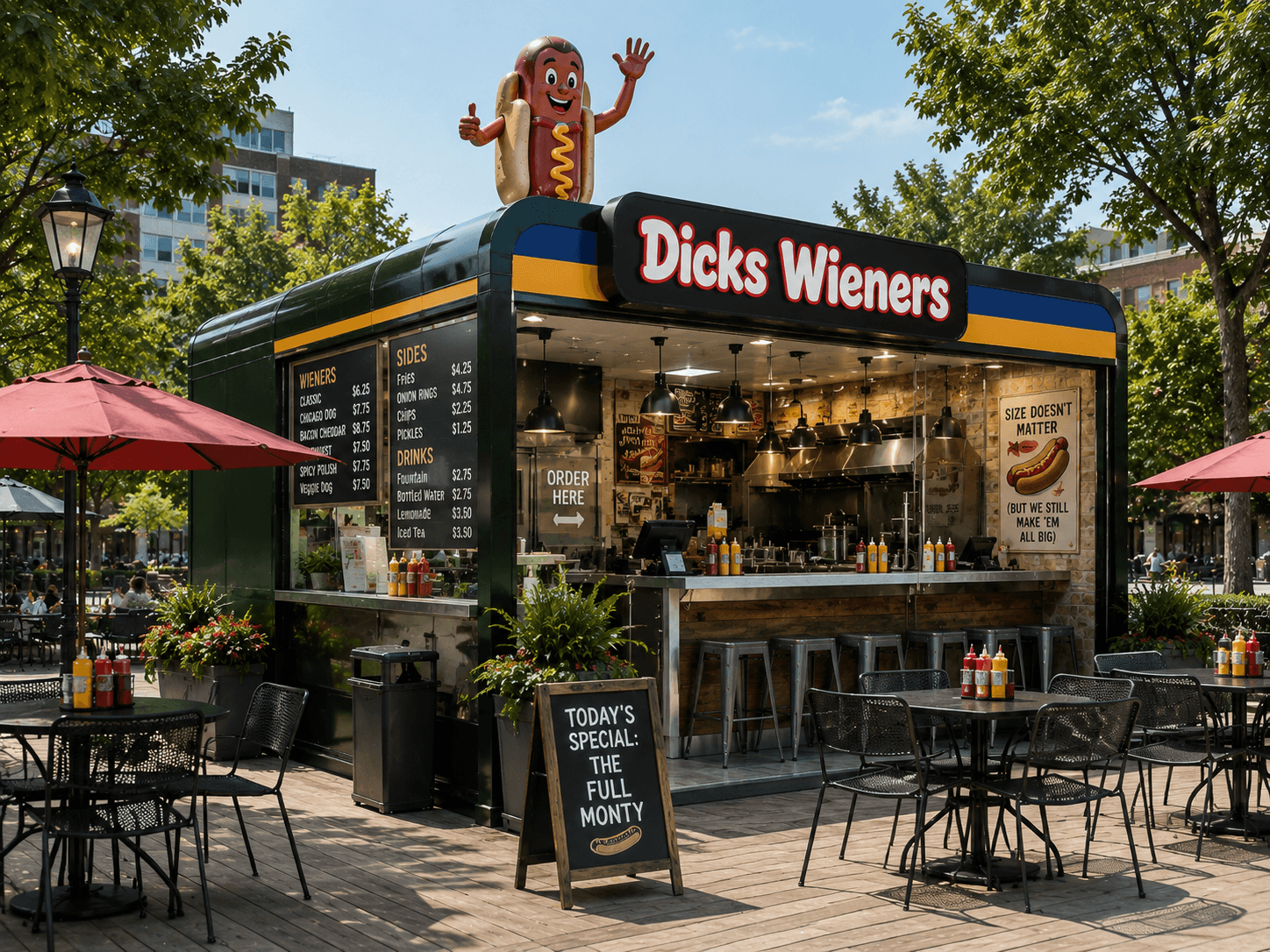

A park kiosk with room for patio seating.

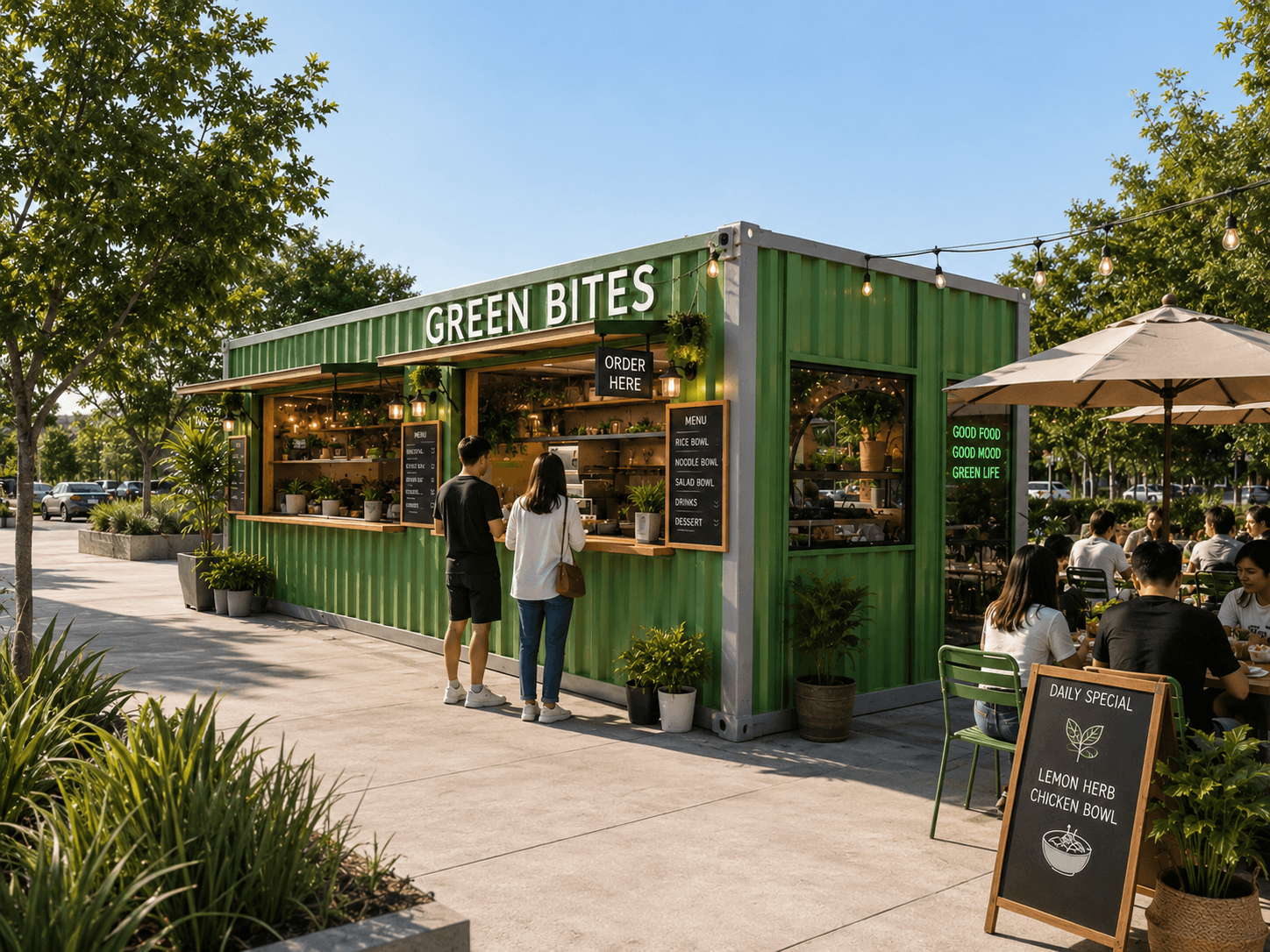

A cafe with a serving window built for fast flow.

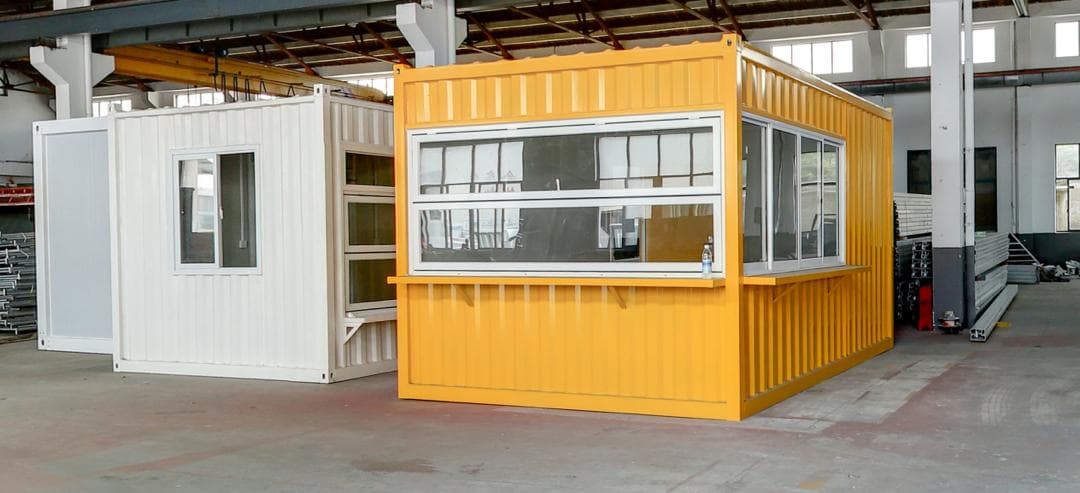

Fold-up serving windows open wide and lock down after hours.

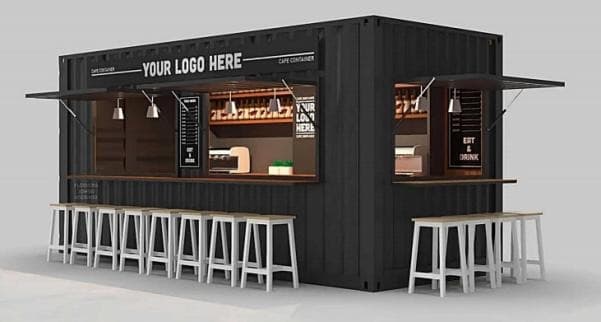

Bar seating and space for your branding.

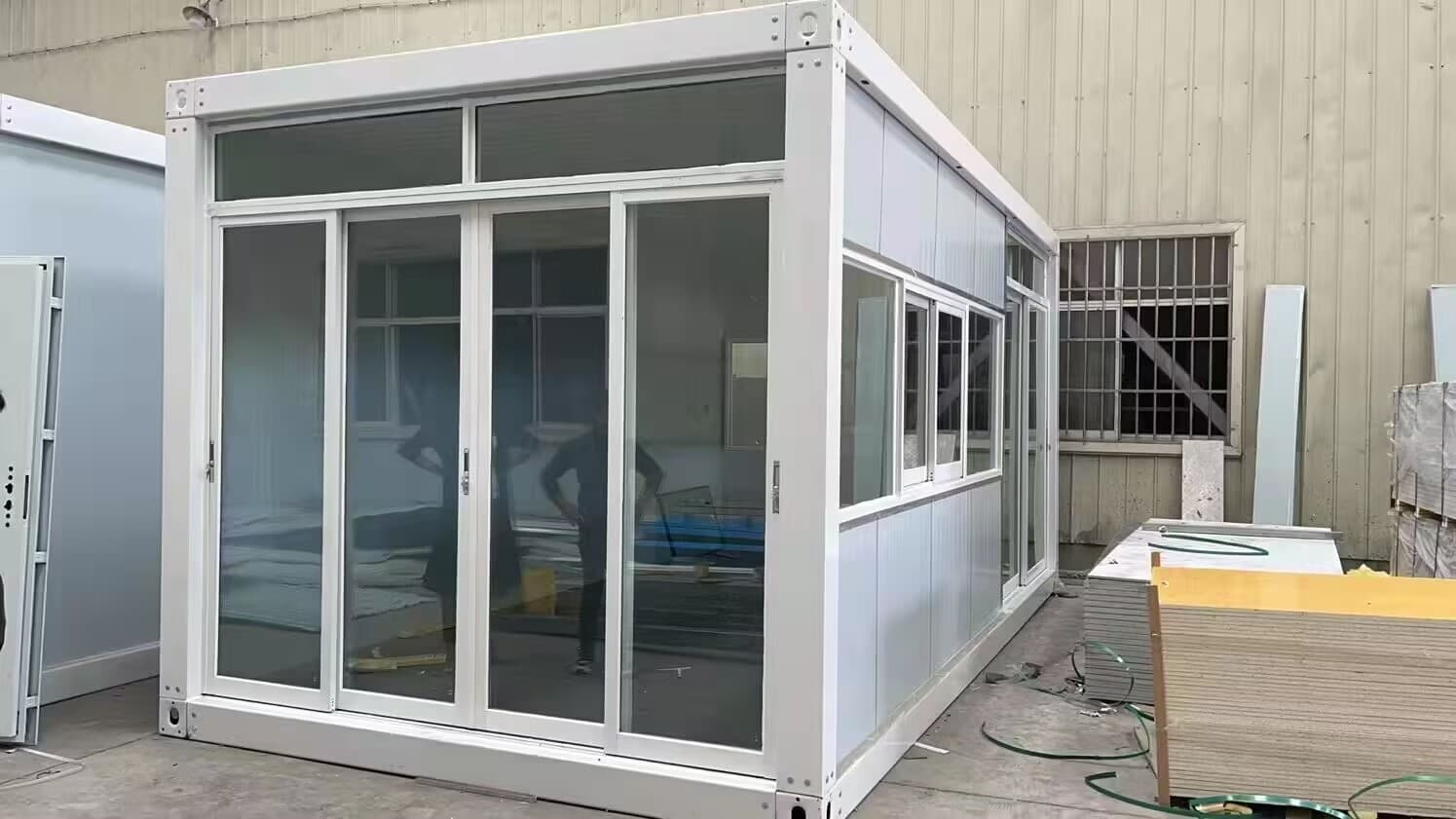

A glass-front retail unit that puts your products on display.

Dimensions

Plan and Elevation

Every Vending Unit is one assembly module: 19'6" long, 9'10" wide and 9'2" high outside.

Plan view of a vending unit: 19'6" long by 9'10" wide outside, 18'10" by 9'1" inside, with a serving window on the long side and a door at one end.PLANServing windowDoorInside 18'10" x 9'1"19'6"9'10"Front elevation of a vending unit: 19'6" long and 9'2" high outside, with a serving window and counter in the long side. The door is in the end wall.FRONT ELEVATIONServing window + counter19'6"9'2"
Outside 19'6" L x 9'10" W x 9'2" H; inside 18'10" x 9'1", 8'3" ceiling. Door 3'0" x 6'8". The serving window, counter and door are shown where most units have them; we build them where you specify.

Design it in the configurator

The Assembly Home studio builds with this same module. It starts at three modules; for a single vending unit, book a consultation and we will quote it directly.

Open the configurator

Key Features

Built to a Higher Standard

Serving Windows

Serving and retail windows where you want them, built for fast customer flow.

Custom Branding

Finish the exterior in your brand colors, logo, and signage.

Steel Module

A galvanized steel frame with insulated sandwich-panel walls and a lockable steel door.

Built to Your Specifications

Tell us your counter, window and equipment layout; we build the unit around it.

Relocatable

Move your storefront to events, seasons, or new locations as needed.

Modular Construction

The same module as our Assembly Homes: join units side by side for a larger storefront.

Who It's For

One Home, Many Possibilities

Kiosk

A compact, lockable kiosk for snacks, phone accessories, or services.

Coffee Stand

An espresso and drinks counter with a serving window for a steady line.

Retail Pop-Up

A branded shop for a season, an event, or a new market.

Ticket Booth

Box office, gate or parking booth with a window on the queue.

Ready to Reserve?

Secure your home with a fully refundable $500 deposit. We'll contact you within 24 hours to finalize your configuration.

Reserve Your Home - $500

100% refundable · No obligation · Locks your configuration
